Design for Manufacturability (DFM): A Practical Guide

Introduction

In product development, a great design is not just about functionality or aesthetics—it must also be easy and cost-effective to manufacture. This is where Design for Manufacturability (DFM) plays a critical role.

DFM is the practice of designing parts, products, or components in a way that simplifies manufacturing, reduces costs, and improves quality. Companies that integrate DFM early in the design stage gain a significant advantage in both time-to-market and overall production efficiency.

What is Design for Manufacturability (DFM)?

Design for Manufacturability is an engineering approach that focuses on optimizing a product’s design so it can be produced efficiently using available manufacturing processes.

In simple terms:

DFM ensures your design works not just on screen—but also on the shop floor.

Why DFM Matters

Ignoring DFM can lead to serious issues during production:

• Increased manufacturing costs

• Longer lead times

• Complex machining or fabrication

• Higher rejection rates

• Frequent design revisions

With DFM, you get:

• Cost-optimized designs

• Faster production cycles

• Improved product quality

• Reduced manufacturing risks

🛠️ Core Principles of DFM

1. Simplify the Design

The more complex a design, the more expensive it becomes to manufacture.

• Reduce unnecessary features

• Minimize part count

• Avoid complex geometries unless required

2. Choose the Right Manufacturing Process

Each process has its strengths and limitations.

• CNC machining → high precision

• Sheet metal → enclosures & structures

• Injection molding → high-volume plastic parts

Designing without considering the process leads to inefficiencies.

3. Optimize Material Selection

Material impacts both cost and manufacturability.

• Use standard materials when possible

• Avoid hard-to-machine materials unless necessary

• Balance strength vs machinability

4. Standardize Components

Using standard sizes and features reduces complexity.

• Standard hole sizes

• Common fasteners

• Readily available materials

5. Consider Tolerances Carefully

Tighter tolerances increase machining time and cost.

• Apply tight tolerances only where necessary

• Use general tolerances elsewhere

6. Design for Easy Assembly

A product should be easy to assemble without excessive effort.

• Reduce number of parts

• Use self-aligning features

• Minimize fasteners

🔩 DFM Tips for Common Manufacturing Processes

CNC Machining

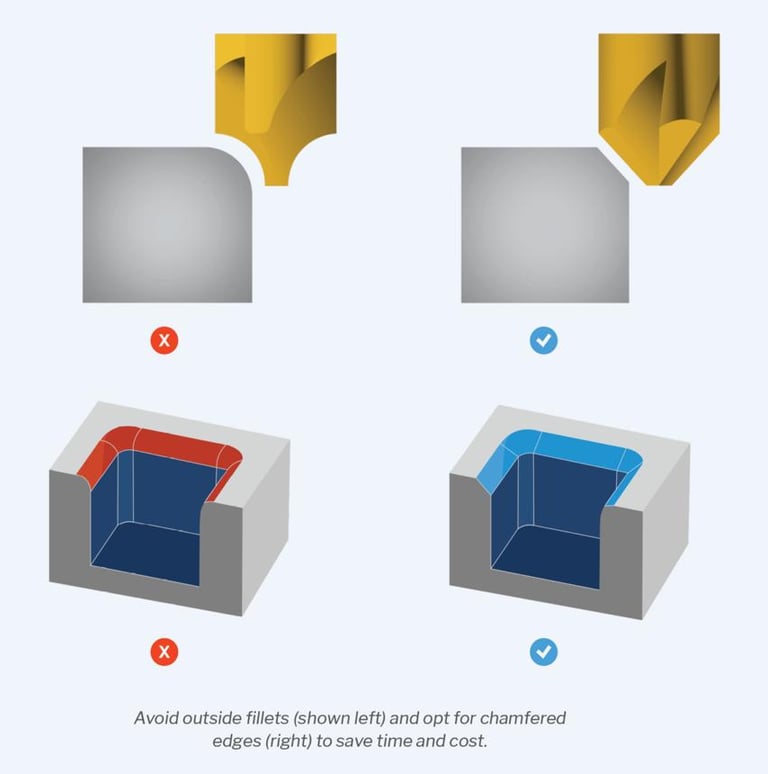

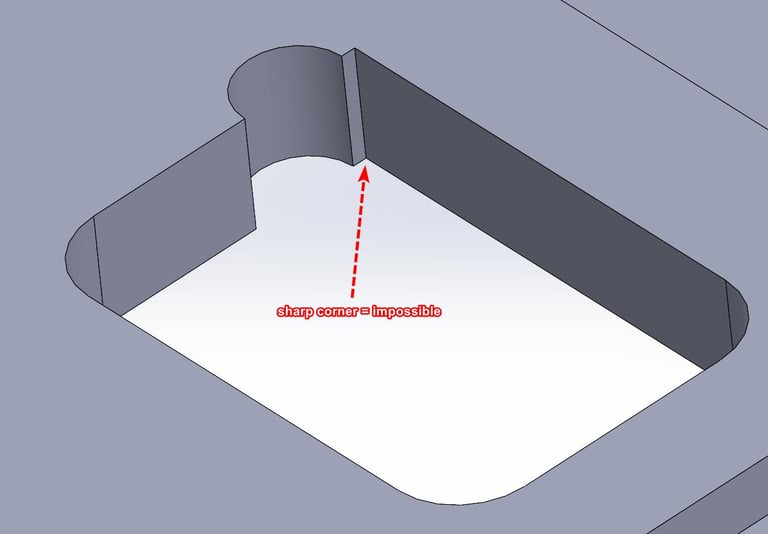

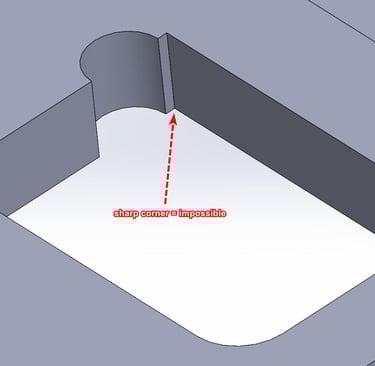

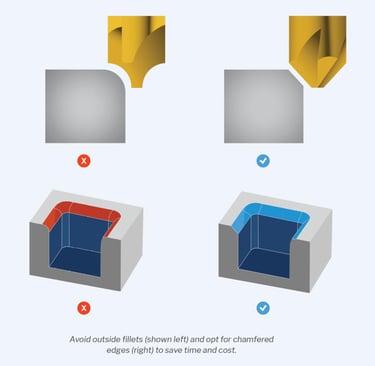

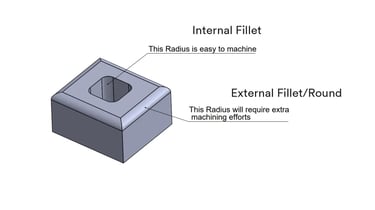

• Avoid sharp internal corners (use fillets)

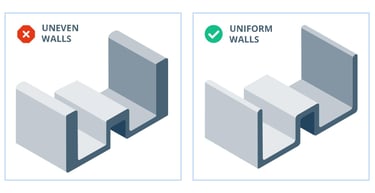

• Maintain uniform wall thickness

• Ensure tool accessibility

• Avoid deep narrow cavities

Sheet Metal Fabrication

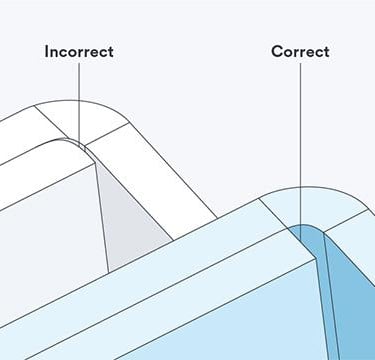

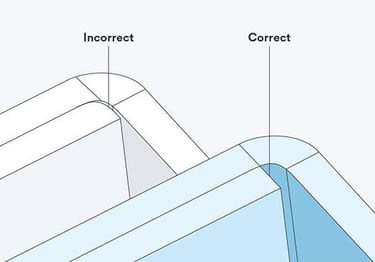

• Maintain consistent bend radius

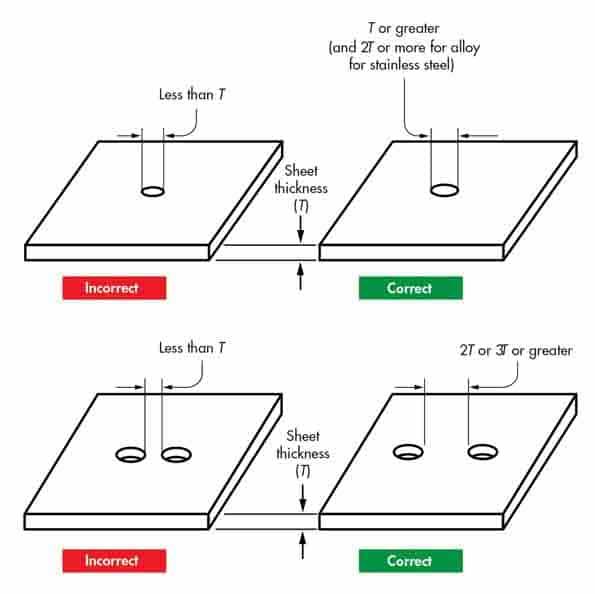

• Avoid placing holes too close to bends

• Use standard thicknesses

• Design for minimal bending operations

Injection Molding

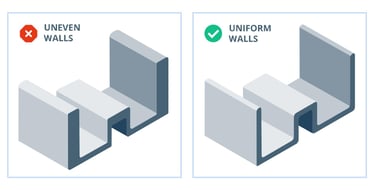

• Maintain uniform wall thickness

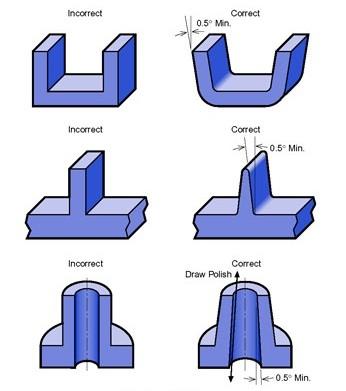

• Add draft angles for easy ejection

• Avoid undercuts if possible

• Use ribs instead of thick sections

Common DFM Mistakes to Avoid

• Over-engineering the design

• Ignoring manufacturing constraints

• Using unrealistic tolerances

• Designing without supplier input

• Not prototyping before production

Role of Manufacturing Partners in DFM

Collaborating with an experienced manufacturing partner early in the design stage can significantly improve outcomes.

They can help with:

• Design validation

• Process selection

• Cost optimization

• Material recommendations

This is where Manufacturing as a Service (MaaS) adds real value—by combining design insights with production capabilities.

Real-World Impact of DFM

Companies that implement DFM effectively often see:

• Up to 30% reduction in production cost

• Faster product launches

• Fewer design revisions

• Improved product reliability

Conclusion

Design for Manufacturability is not just an engineering best practice—it’s a business advantage. By considering manufacturing constraints during the design phase, companies can save time, reduce costs, and deliver better products to market.

Whether you're developing a prototype or scaling production, integrating DFM early ensures a smoother journey from concept to reality.
